Here are the Diode Mode readings for the different connectors for the iPhone 12 Pro Max.
These were all done by me using the Fluke 115 Multimeter

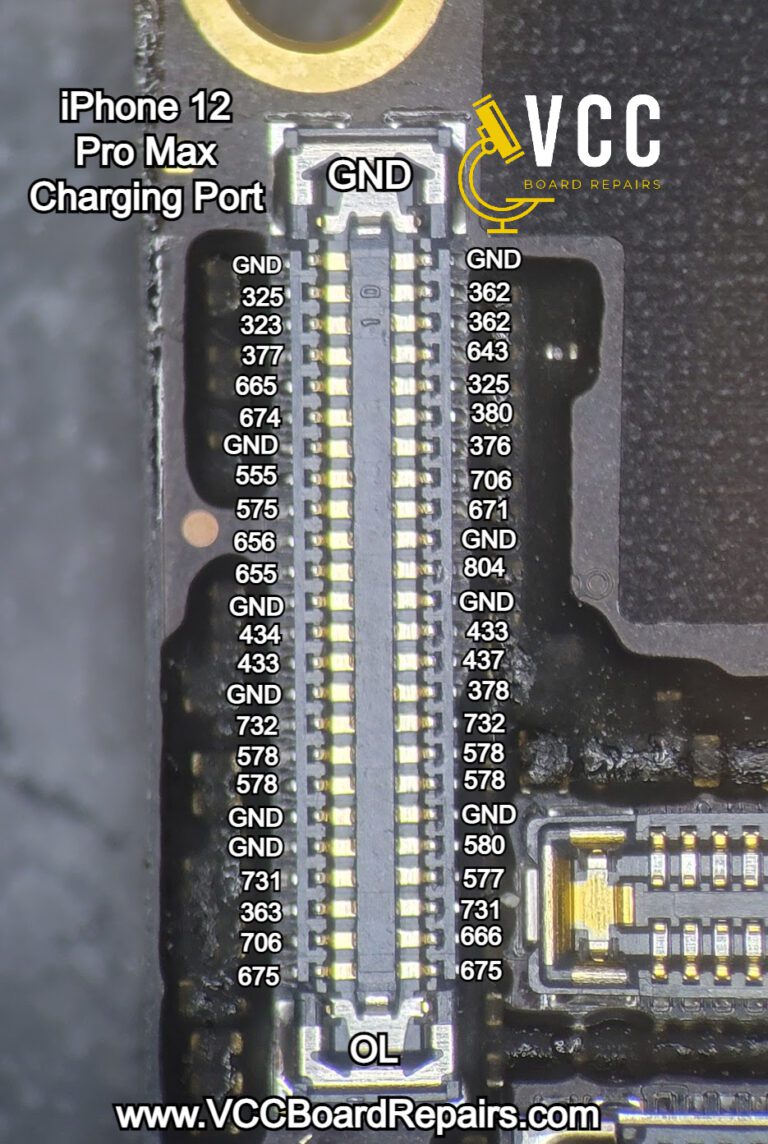

iPhone 12 Pro Max – Charging Port Connector
More coming soon…
iPhone 12 Pro Max – Diode Mode Readings
